The embedded-die-in-substrate platform has its own history and adoption scheme compared to other advanced packaging platforms, explains Yole Développement (Yole). Indeed while the first significant volume of embedded die in integrated circuit (IC) package substrates came from direct current (DC) converters in smartphones, penetration in other market segments of interest to embedded die such as automotive, medical or aerospace was simply delayed due to much longer qualification times and regulatory approval cycles.
Furthermore, embedded die platforms are showing different drivers compared to competing solutions…
The embedded die platform has been incubated and brewed for years patiently waiting for the right moment to appear on the scene in considerable volume. It seems we are finally nearing the point of inflection – from incubation to volume, comments Yole’s Advanced Packaging & Semiconductor Manufacturing team.
Embedded Die Packaging: Technology& Market Trends 2017 contains a full segmentation of the embedded die platform including embedded die in IC package substrates, as well as rigid and flexible boards and the related drivers. This report proposes a detailed analysis of market revenue and unit forecasts per segments such as mobile, automotive, medical, consumer, ICT and industrial. Yole’s analysts review detailed splits per product within each market segment. These estimations are based on industry developments and the likelihood of further success of the embedded die platform.

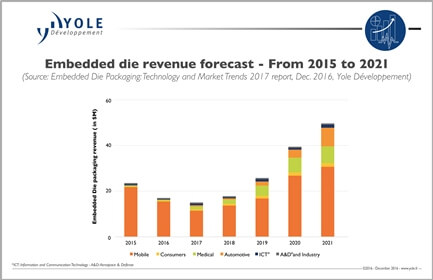

“In 2015, an estimated 94% of the US$23.5 million embedded die packaging market was recorded in the highly competitive mobile segment,” announces Emilie Jolivet, Technology & Market Analyst within Advanced Packaging & Semiconductor Manufacturing team at Yole. 2016 exhibited a revenue decline, expected to last through 2017, due to production decline of camera modules in mobile phones utilizing the embedded die packaging platform. Going forward, the embedded die market is expected to drastically change with product launches in the automotive, medical, information and communication technologies (ICT) consumer and industrial segments. By 2021 non-mobile share of the US$ 49.7 million embedded die packaging market will rise from 6% to 36% of the total revenue. Automotive and medical markets offer a promising opportunity for the embedded die technology rising from scratch to a combined US$15.5 million packaging revenue. Certain products in the medical domains are in the final stages of long-awaited regulatory approvals while the automotive market could be more disruptive with 5-10 times higher revenues, depending on big player adoption rates.
For the first time, in a dedicated technology & market report, the “More than Moore” market research & strategy consulting company Yole treats the embedded-die-in-PCB (printed circuit board) platform as a standalone topic covering embedding in an IC package substrate, as well as in rigid and flexible boards. In addition, Yole’s analysts detail the advanced embedded interconnects such as MCeP® developed by Shinko or Intel’s solution named EMIB®. When advanced embedded interconnects are included, the embedded die packaging revenue rises an order of magnitude.
As announced, in terms of applications, the limited products/one market image is expected to change significantly. The embedded die technology has been known to the high-reliability markets such as medical, aerospace and automotive for years. However, cycle times and especially regulatory approvals follow much different and longer schemes than in the consumer sector. A variety of products is expected to arrive on the market in the near future. A trend from low cost to high value embedded die packaging is on the horizon.
- The automotive sector is forecasted with the highest revenue and unit growth with compound annual growth rate (CAGR) values from 2015 to 2021 of 246% and 239%, respectively and first volumes expected already in 2017. The high growth is expected from the adoption of embedded die in 48V power converters, motor control units, camera modules, distance sensors and lighting modules.
- Following the automotive market, the high-value lower-unit-count medical market is forecasted to exhibit a CAGR of 84%. The products associated include hearing aids, pacemakers, neurostimulation and endoscopic cameras.
In combination with products from other market segments, the overall embedded die packaging revenue CAGR is estimated at 13% and unit CAGR at 25% by 2021. However, although non-mobile products are expected to gain speed, the mobile segment is likely to maintain leadership by 2021 due to several RF and power management units adopting embedded die resulting in a mobile segment revenue CAGR of 9%.
Looking ahead, the adoption of embedded die in new markets is expected to propel the embedded die platform from 2018 onwards to the long awaited higher volumes and growth slopes.
A detailed description of the embedded die report is available on i-micronews.com, advanced packaging reports section.
